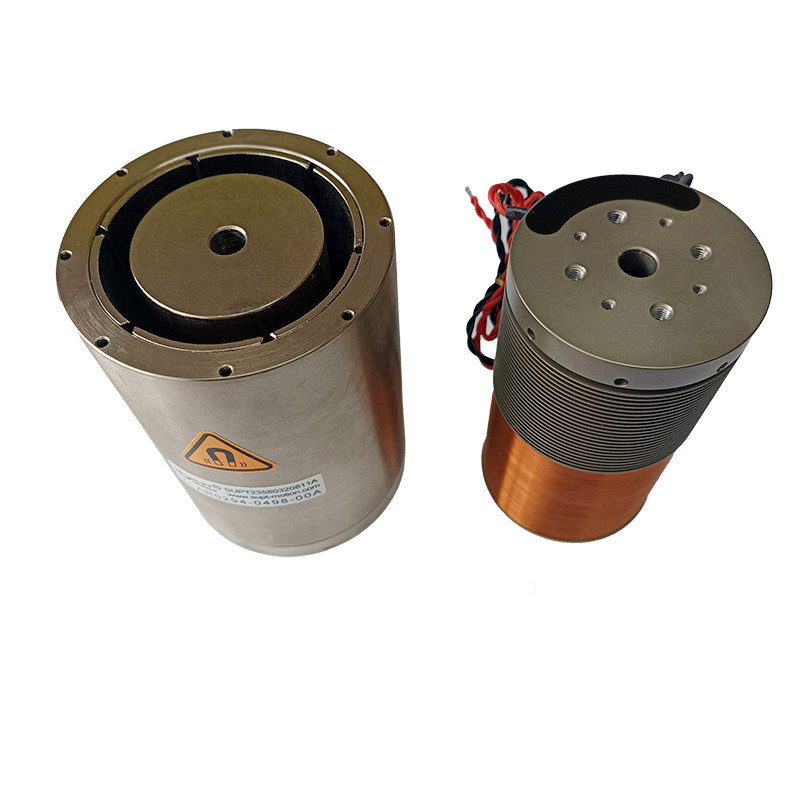

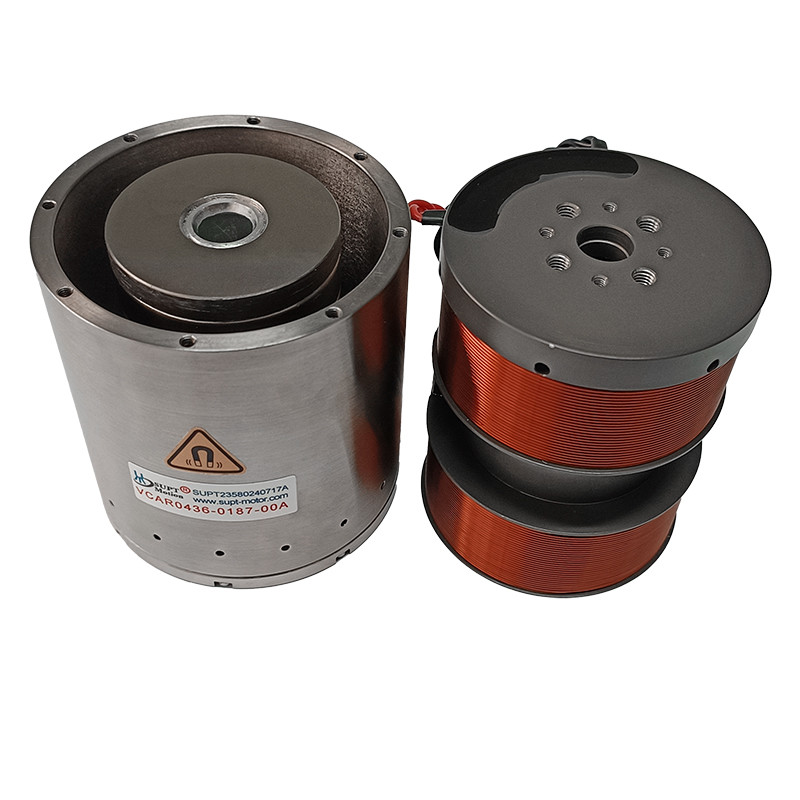

High Precision VCAR Series Voice Coil Motors For Automation Equipment

Product Description:

VCAR series voice coil motors are engineered for industrial automation and smart manufacturing systems, delivering high speed, high acceleration, and precise control for various high-precision tasks. Automation devices often require repetitive, high-frequency, and highly accurate movements such as precision handling, assembly, inspection, spraying, and electronic component positioning. VCAR motors, with micro-sized construction, fast response, and cogging-free design, achieve smooth, rapid, and reliable displacement control.

The VCAR0262-0112-00A provides nanometer-level positioning and high-frequency response, perfectly suitable for high-speed execution tasks on automated production lines. Lightweight movers and low inertia ensure rapid start/stop during high-speed reciprocating motion, maintaining accuracy and stability. Its closed-loop control integrates with optical encoders, laser sensors, or other feedback devices for real-time position adjustment and high-precision operation.

VCAR motors are also applied in robot joint fine-tuning, 3D printing stage movement, automated electronic assembly, and laboratory automation. Compact design allows integration into space-limited devices, while high-frequency response ensures smooth motion under high-load, preventing vibration from affecting precision.

Features:

High speed and high acceleration for high-frequency automation

Nanometer-level positioning for precise and reliable motion

Cogging-free, smooth, vibration-free operation

Compact micro-sized design for space-limited devices

High-frequency response, real-time closed-loop control

Lightweight mover reduces inertia and improves dynamics

Long service life, reduces maintenance costs

Product Parameters:

Peak force: 0.73 N – 1351 N

Continuous force: 0.42 N – 376.8 N

Stroke: 1 mm – 63 mm

Voltage: 4.8 V – 73.5 V

Back-EMF constant: 0.6 – 48.6 V/m/s

Mover mass: 2.7 g – 130 g

Stator diameter: 20 mm – 170 mm

Coil insertion length: 11.2 – 143.7 mm

Applications:

Automated assembly and handling

Precision robot joint adjustment

3D printing platform micro-movement

Automated electronic assembly

Laboratory automation equipment

High-precision inspection systems

FAQ:

Q: Is VCAR0105-0164-00A suitable for robot joint fine-tuning?
A: Yes, high-speed and high-precision characteristics allow micron-level joint adjustments.

Q: Will long-term high-frequency operation cause wear?
A: Extremely low friction and cogging-free design ensure stable long-term use.

Q: Can it control micro-displacement in 3D printing platforms?
A: Fully compatible; high precision and fast response guarantee printing accuracy.
