High Speed Linear Vibration Voice Coil Motor for Industrial Automation

  • High Speed Linear Vibration Voice Coil Motor for Industrial Automation
  • High Speed Linear Vibration Voice Coil Motor for Industrial Automation
  • High Speed Linear Vibration Voice Coil Motor for Industrial Automation
Nguồn gốc Trung Quốc, Tô Châu
Hàng hiệu SUPT MOTION
Chứng nhận ISO9001
Số mô hình Dòng VCAZ
Số lượng đặt hàng tối thiểu 2 cái
Giá bán $100-$205
chi tiết đóng gói Bao bì tùy chỉnh, vv
Thời gian giao hàng 1-5 chiếc, 5 ngày. > 20 chiếc, sẽ được thương lượng
Điều khoản thanh toán T/T
Khả năng cung cấp Sẽ được đàm phán
Thông tin chi tiết sản phẩm
Loại động cơ Động cơ rung Lực cao nhất 11N
Thông số kỹ thuật mô hình VCZA0011-0040-00A Bắt đầu hiện tại 2A
Điện áp định mức 15V Sức mạnh @ Fp 30W
Đột quỵ 4mm trọng lượng thiết bị truyền động 86g
Tốc độ Cao Lực liên tục 4,6N
Kiểu động cơ siêu nhỏ Tính năng bảo vệ hoàn toàn kèm theo
Để lại lời nhắn
Mô tả sản phẩm

Product Description:

SUPTMOTION VCAZ Series High-Speed Linear Vibrating Voice Coil Motors are specifically designed for industrial automation equipment requiring rapid motion response and precise positioning. In high-speed automation systems, motion actuators must deliver both high acceleration and exceptional motion stability to maintain production efficiency.
The VCAZ series linear vibrating voice coil motor is engineered to deliver smooth motion, zero backlash, and high-precision positioning performance. With its high-frequency response characteristics, this actuator rapidly responds to motion commands, enabling extremely fast acceleration and deceleration. This allows automation systems to execute rapid positioning and repetitive motion cycles while maintaining precise control.
The compact design of linear vibrating voice coil motors makes them suitable for integration into robotic systems, motion platforms, and automated production equipment. Their lightweight structure minimizes system inertia while maintaining robust thrust capabilities.
Vibrating voice coil motors utilize a frictionless electromagnetic drive system, offering extended lifespan and high reliability. The absence of mechanical contact components significantly reduces wear and maintenance requirements.
With its high-speed operation, precise motion control, compact design, and long service life, the linear vibrating voice coil motor has become the ideal motion solution for modern industrial automation systems.

Features:

Type: Vibration Motor, Flexible Vibration Disc Voice Coil Motor, Vibration Voice Coil Motor,Linear Vibration Voice Coil Motor

1.High speed motion control

2.Direct drive linear motor design

3.Smooth frictionless movement

4.Compact actuator structure

5.Long service life

Product Parameters:

Stroke: 4 mm
Continuous Force: 4.6 N
Peak Force: 11 N
Max Speed: 2 m/s
Repeatability: ±0.5 μm


Model NumberVCAZ0010-0020-00A
Coil parametersToleranceSymbolValueUnit
DCR±10%R9.5Ω
Peak Voltagestandard valueVp14.8V
Maximum currentstandard valueIp1.6A
Force constant±7.5%KF2.7N/A
Back EMF constantstandard valueKD2.7V/M/Sec
Inductance±30%L0.37mH
Actuator paramtersSymbolValueUnit
Peak forceFp10.2N
Continuous stall forceFc2.2N
Actuator coonstantKa0.87N//W
Electrical time constantTe0.04milli-sec
PmaxPp24W
StrokeS1.5mm
Clearance of each side of coilCL0.8mm
Thermal resistanceOth20℃/W
Maximum coi temp allowedTmax150℃
Weight of coilWTc13g
Weight of magnet steelWTE56g
Weight of ActuatorWTa69g

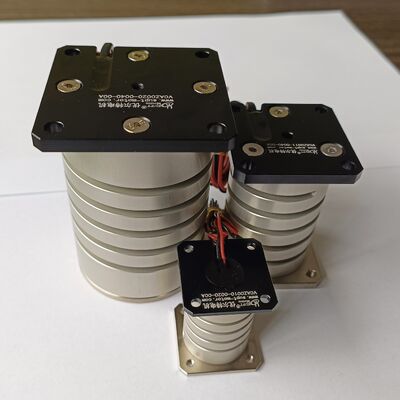

High Speed Linear Vibration Voice Coil Motor for Industrial Automation 0

Applications:

1.Industrial automation systems

2.Robotics motion modules

3.High-speed positioning stages

4Automated production lines



The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry
injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.

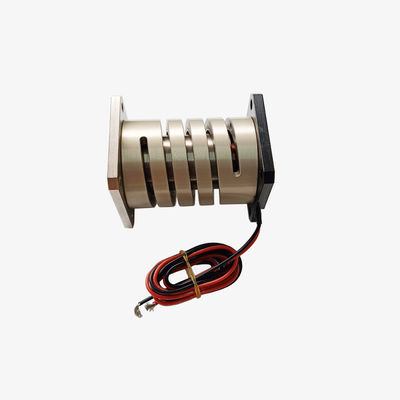

High Speed Linear Vibration Voice Coil Motor for Industrial Automation 1
