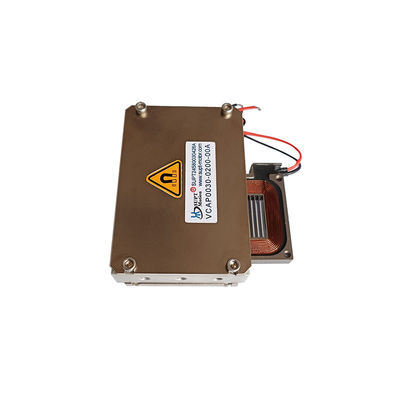

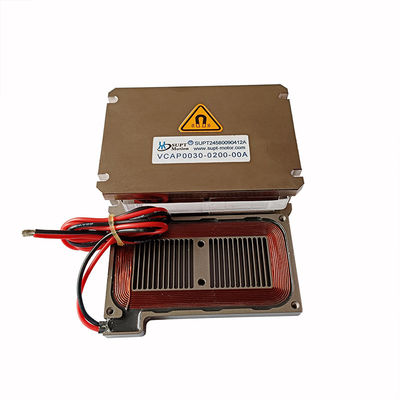

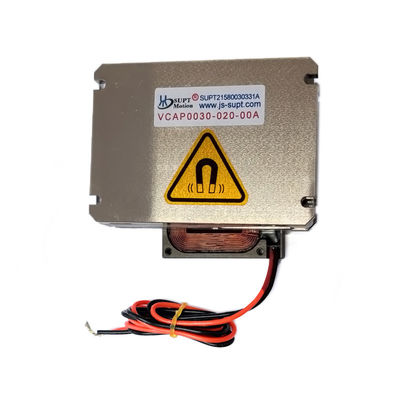

High Force Long Stroke Flat Voice Coil Motor For Precision Assembly

  • High Force Long Stroke Flat Voice Coil Motor For Precision Assembly
  • High Force Long Stroke Flat Voice Coil Motor For Precision Assembly
  • High Force Long Stroke Flat Voice Coil Motor For Precision Assembly
  • High Force Long Stroke Flat Voice Coil Motor For Precision Assembly
Nguồn gốc Trung Quốc, Tô Châu
Hàng hiệu SUPT MOTION
Chứng nhận CE, ISO9001
Số mô hình VCAP0030-0200-00A
Số lượng đặt hàng tối thiểu 1 cái
Giá bán $105-$310
chi tiết đóng gói bao bì carton vv
Thời gian giao hàng 1-5 chiếc, 5 ngày. > 20 chiếc, sẽ được thương lượng
Điều khoản thanh toán T/T
Khả năng cung cấp Sẽ được đàm phán
Thông tin chi tiết sản phẩm
Độ ồn Thấp Bảo hành 3 tháng-1 năm
Lực lượng tối đa 30N Điện áp 24.3V
Mẫu sản phẩm VCAP0020-0068-00A Vật liệu nhà ở Nhôm
Kiểu động cơ siêu nhỏ Đột quỵ 20mm
Chiều dài đột quỵ 80mm
Để lại lời nhắn
Mô tả sản phẩm

Product Description:

The SUPT VCAP0075-0180-00A is a high-performance flat voice coil motor optimized for high-thrust, long-stroke industrial automation tasks. It delivers a powerful peak thrust of 30 N, a continuous thrust of 12.3 N, and a stroke of 20 mm, making it ideal for applications such as precision assembly, pressing, positioning, and material handling. Its robust, compact construction ensures high rigidity, low vibration, and stable performance under heavy loads. Featuring an efficient magnetic circuit design, this flat voice coil motor delivers smooth force output, rapid response, and no cogging effect, supporting high-precision closed-loop control. With a maximum voltage of 24.3V and a back-EMF constant of 10.5 V/m/s, it offers exceptional energy efficiency and stable performance. An advanced heat dissipation design ensures low heat generation and reliable long-term operation. This flat voice coil motor is widely used in 3C electronics assembly, automotive parts manufacturing, precision stamping systems, semiconductor packaging, and flat-panel display production lines. It combines high thrust, long stroke, and high reliability to meet the demands of modern industrial automation.

Features:

Magnetic Circuit and Air Gap: Prioritize double-sided multi-stage or differential structures to optimize the magnetic yoke and reduce stray flux; the air gap must balance magnetic flux density and manufacturing tolerances.
Coil Optimization: Low inductance and low resistance to improve dynamic performance; wire gauge and number of turns should be matched to thrust and power consumption.
Guidance mechanism: Flexible hinges are suitable for micro-displacements and frictionless operation; linear bearings are suitable for slightly longer strokes, where friction and lateral forces must be controlled.

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Length
(mm)		 Width
(mm)		 Height
(mm)
VCAP0020-0068-00A 20 5.5 6.8 8.2 4.4 39 50 21.5
VCAP0020-0160-00A 20 5.3 16 27.6 4.4 59 50 22.5
VCAP0030-0200-00A 30 12.3 20 24.3 10.5 80 74 25
VCAP0100-0020-00A 100 47 4 41.2 80.1 110 105 51



VCAP0030-0200-00A
Parameter value Parameter value
Model VCAP0030-0200-00A Peak thrust 30N
Continuous Thrust (25°C) 5.512.3 Total stroke 20mm
Maximum Voltage 24.3V Back-EMF constant 10.5V/m/s
Length 80mm Width 74mm
Height 25mm Protection Rating IP54





Applications:

The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery.



1.Precision metal stamping equipment
2.Precision assembly machines for automotive parts
3.Precision sensor calibration systems
4.Small-scale automated assembly lines
