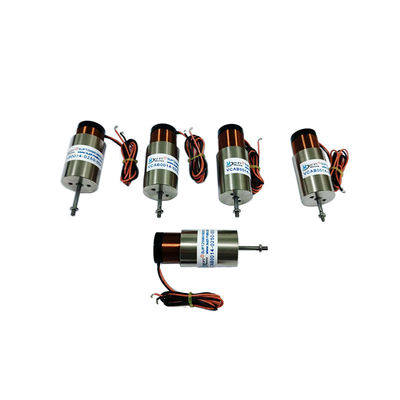

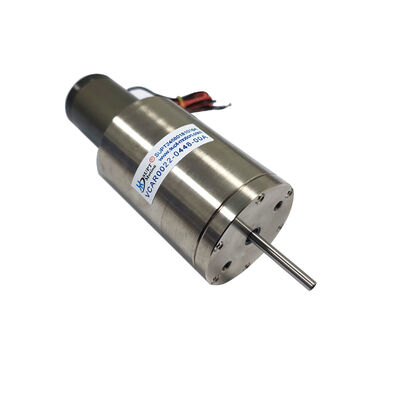

44N 5.9mm Stroke High Precision Shaft Voice Coil Motor For AOI Systems

  • 44N 5.9mm Stroke High Precision Shaft Voice Coil Motor For AOI Systems
  • 44N 5.9mm Stroke High Precision Shaft Voice Coil Motor For AOI Systems
  • 44N 5.9mm Stroke High Precision Shaft Voice Coil Motor For AOI Systems
Nguồn gốc Giang Tô, Trung Quốc
Hàng hiệu SUPT MOTION
Chứng nhận ISO9001
Số mô hình VCAB0044-0059-00A
Số lượng đặt hàng tối thiểu 2 cái
Giá bán $150-$280
chi tiết đóng gói Bao bì tùy chỉnh, vv
Thời gian giao hàng 1-5 chiếc, 5 ngày. > 20 chiếc, sẽ được thương lượng
Điều khoản thanh toán T/T
Khả năng cung cấp Sẽ được đàm phán
Thông tin chi tiết sản phẩm
Loại sản phẩm động cơ cuộn dây bằng giọng nói tuyến tính Cách sử dụng Định hình bề mặt chính xác, TÀU, Ô tô, Xe đạp điện
Cảng Thượng Hải Nguồn điện Yêu cầu về điện áp và dòng điện
Lực cao nhất 44N Sự thi công Nam châm vĩnh cửu
Loại lực Lực truyền động trực tiếp Bảo hành 3 tháng-1 năm
điện áp tối đa 14,3V Tính năng bảo vệ hoàn toàn kèm theo
Tổng số đột quỵ 5,9mm Loại ổ đĩa Cuộn dây giọng nói
Làm nổi bật

44N high precision voice coil motor

,

5.9mm stroke voice coil motor

,

AOI systems linear voice coil motor
Để lại lời nhắn
Mô tả sản phẩm

Product Description:

The VCAB0044-0059-00A is a high-precision, semi-enclosed shaft-type voice coil motor optimized for automated optical inspection (AOI), semiconductor test equipment, and precision positioning applications that demand extremely high accuracy and repeatability.


The VCAB series of linear voice coil motors features a built-in motion shaft design and integrates precision linear bearings to provide smooth, low-friction guidance and exceptional accuracy. The motion shaft is constructed from lightweight, high-stiffness, wear-resistant materials, ensuring stable positioning accuracy over millions of cycles. Its lightweight design enables rapid acceleration and short stabilization times, making it ideal for high-speed inspection and testing applications.


In AOI and semiconductor inspection systems, precise Z-axis positioning is critical for maintaining focus during high-speed image capture. This linear voice coil motor employs a direct-drive design with zero cogging effects, ensuring smooth, artifact-free motion; simultaneously, its high thrust-to-mass ratio enables rapid focus adjustments without overshoot. The 5.9 mm stroke provides ample travel for autofocus systems and surface profile measurement applications.


The semi-enclosed housing design protects internal components from dust and contaminants, which is critical in cleanroom environments where particulate matter can compromise optical inspection quality. Integrated precision bearings eliminate the need for external guide rail assemblies, reducing system complexity and cost while enhancing overall reliability.


This linear voice coil motor is also ideally suited for probe testing applications, where controlled contact force is critical for accurate electrical measurements. The linear force-current relationship enables precise force regulation, ensuring consistent contact pressure across multiple test points. The zero-backlash mechanism prevents positioning errors, thereby avoiding contact failures or false fault detections.



Features:

  • Product Name: Linear Voice Coil Motor
  • Model Number: VCAH0044-0059-00A
  • Peak Force: 44.1 N
  • Continuous Force @25℃: 17.7 N
  • Total Stroke: 5.9 mm
  • Max Voltage: 14.3 V
  • Back EMF Constant: 8 V/m/s
  • Coil Weight: 43 g
  • Stator Diameter: 46 mm


Technical Parameters:



Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10



Applications:

The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.



1.Automated optical inspection (AOI) autofocus

2.Semiconductor probe testers

3.Precision surface profiling

4.Dispensing needle positioning

5.Test probe contact force control

6.Metrology equipment positioning
